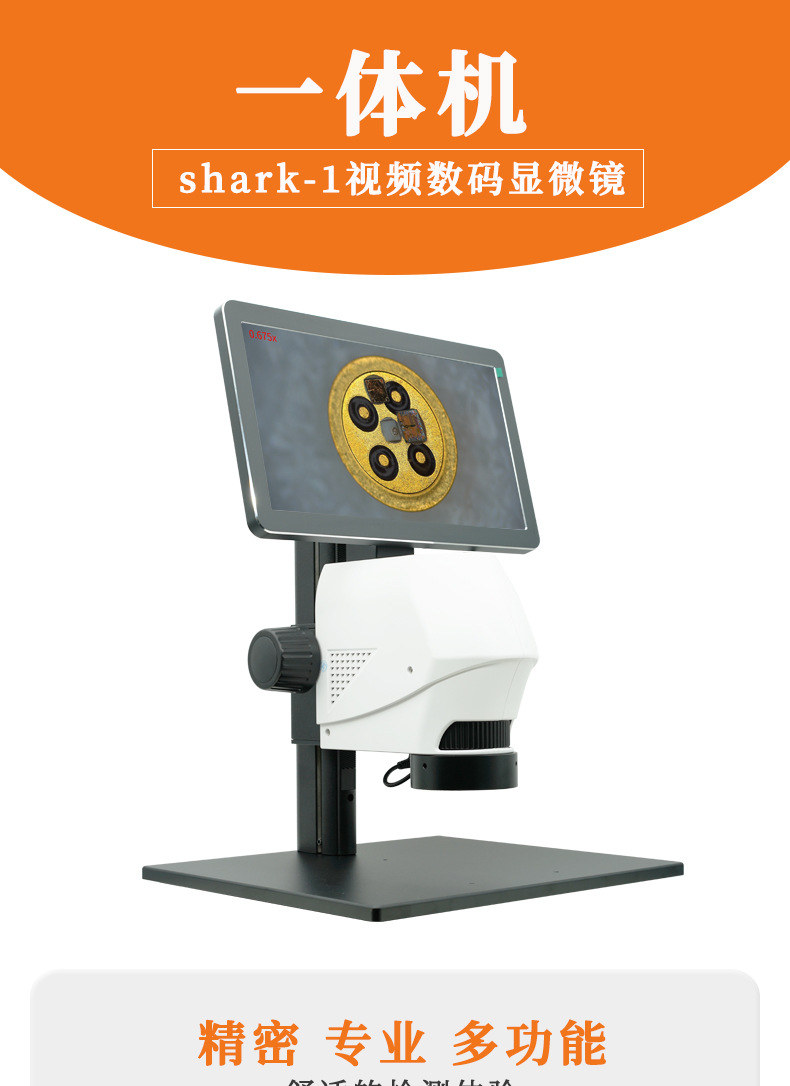

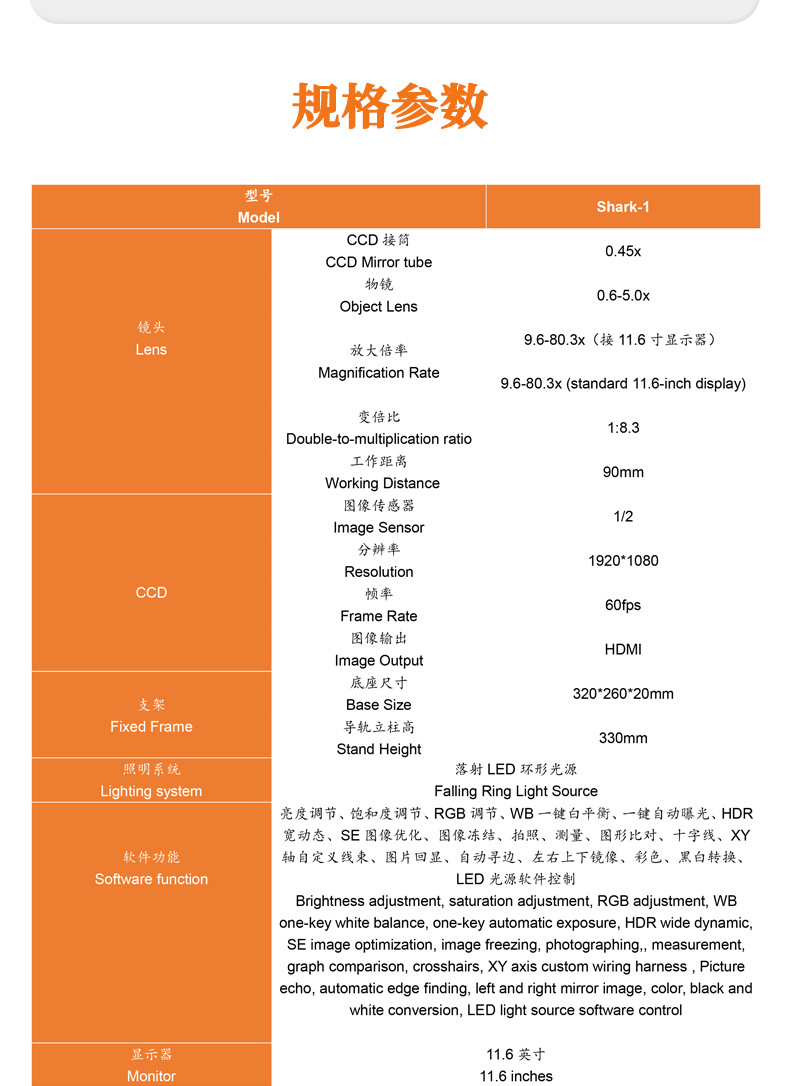

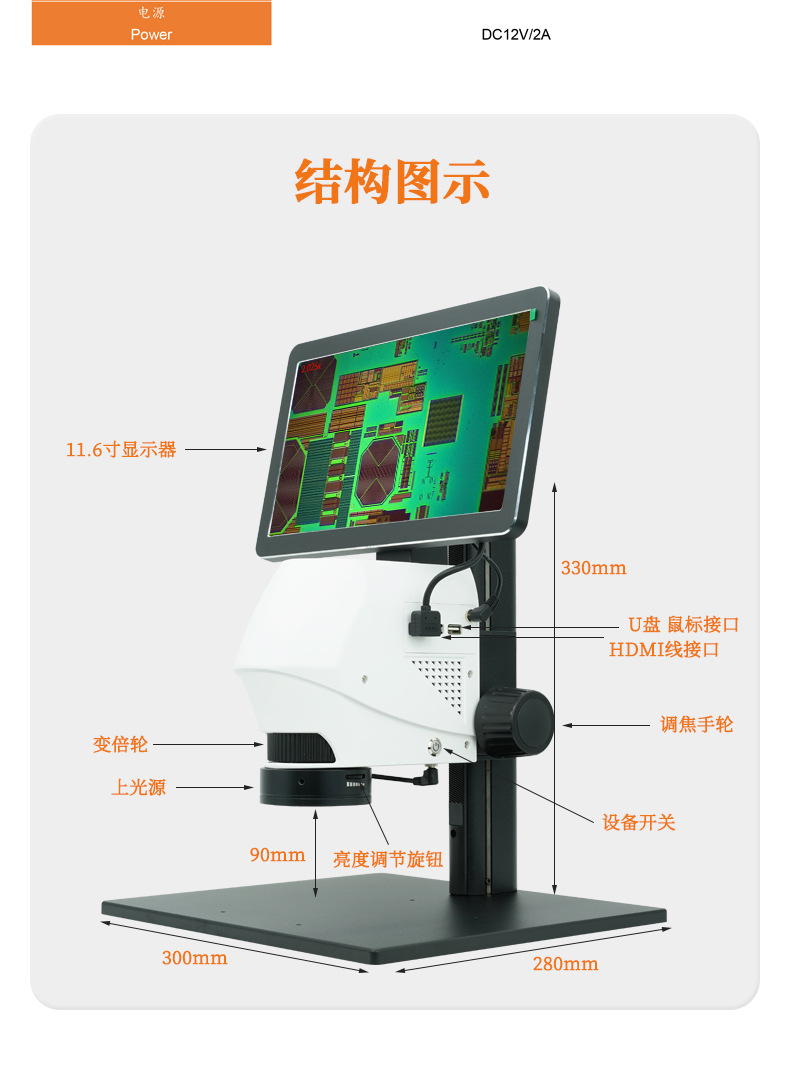

型号 Model | SHARK-1 | |
镜头 Lens | CCD接筒 CCD Mirror tube | 0.45x |
物镜 Object Lens | 0.6-5.0x | |
放大倍率 Magnification Rate | 9.6-80.2x（标配11.6英寸显示器） 9.6-80.2x (standard 11.6-inch display) | |
变倍比 Double-to-multiplication ratio | 1:8.3 | |
工作距离 Working Distance | 90mm | |
CCD | 图像传感器 Image Sensor | 1/2 |
分辨率 Resolution | 1920*1080 | |
帧率 Frame Rate | 60fps | |

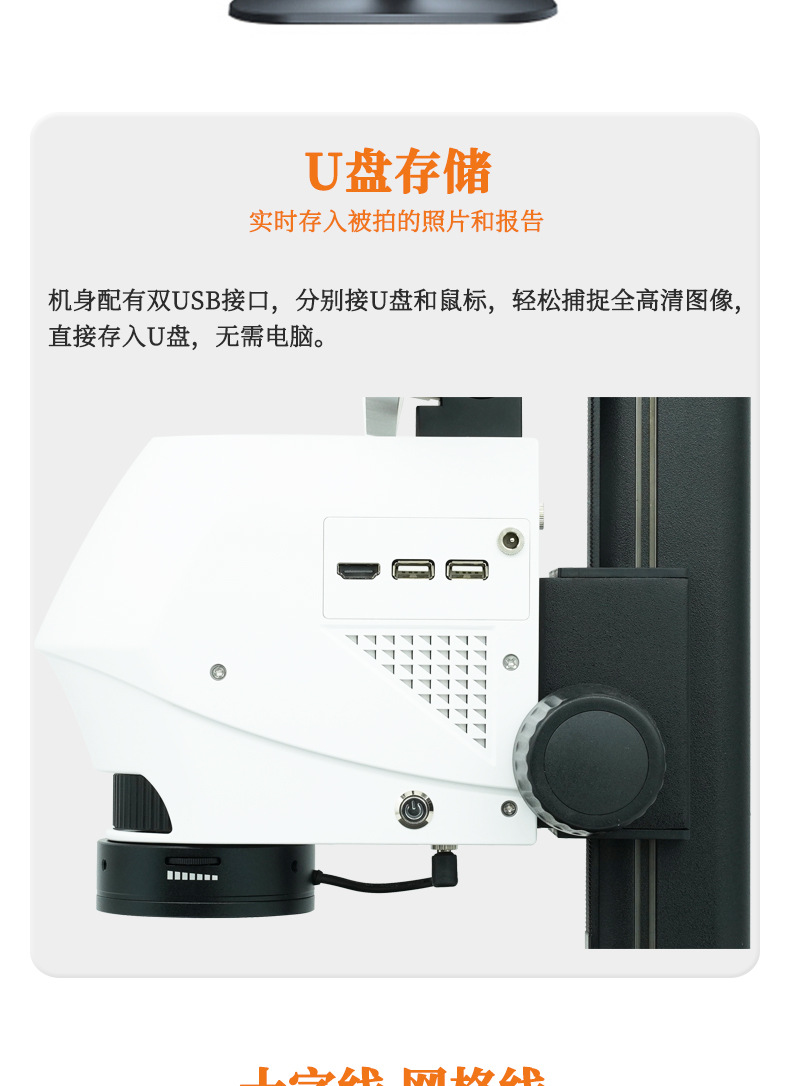

图像输出 Image Output | HDMI | |
支架 Fixed Frame | 底座尺寸 Base Size | 320*260*20mm |
导轨立柱高 Stand Height
| 330mm | |
照明系统 Lighting system | 落射LED环形光源 Falling Ring Light Source | |

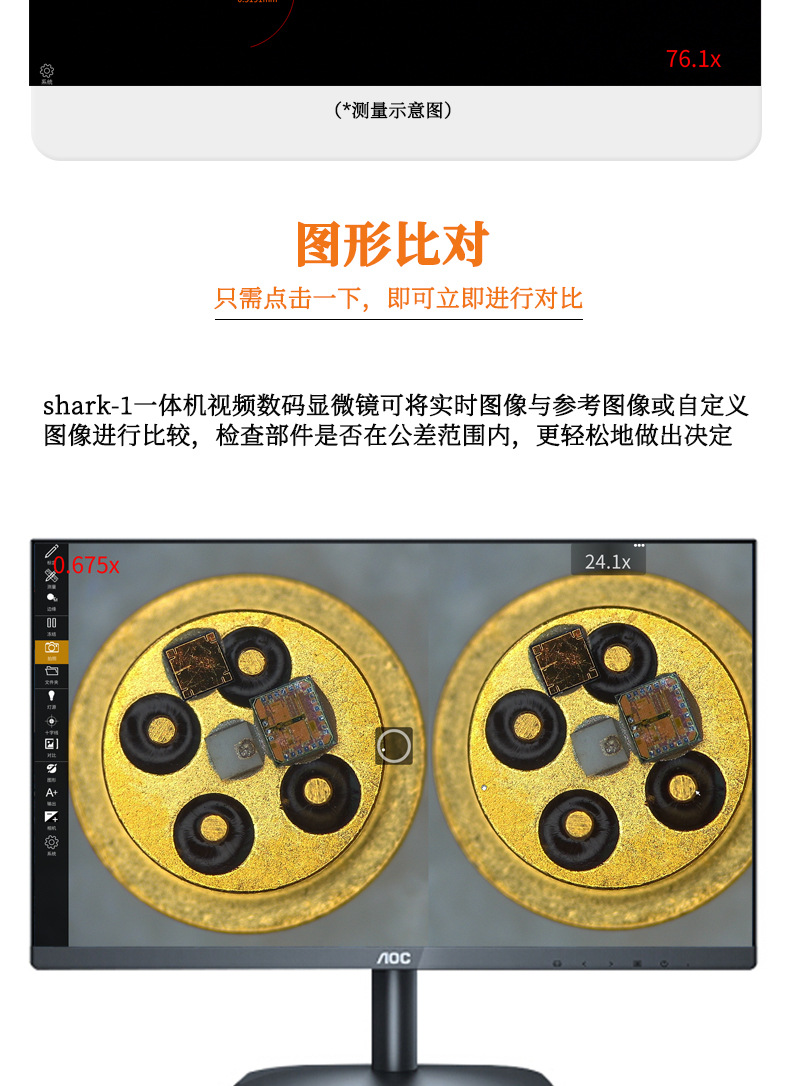

软件功能 Software function | 亮度调节、饱和度调节、RGB调节、WB一键白平衡、一键自动曝光、HDR宽动态、SE图像优化、图像冻结、拍照、测量、图形比对、十字线、XY轴自定义线束、图片回显、自动寻边、左右上下镜像、彩色、黑白转换、LED光源软件控制 Brightness adjustment, saturation adjustment, RGB adjustment, WB one-key white balance, one-key automatic exposure, HDR wide dynamic, SE image optimization, image freezing, photographing,, measurement, graph comparison, crosshairs, XY axis custom wiring harness , Picture echo, automatic edge finding, left and right mirror image, color, black and white conversion, LED light source software control
| |

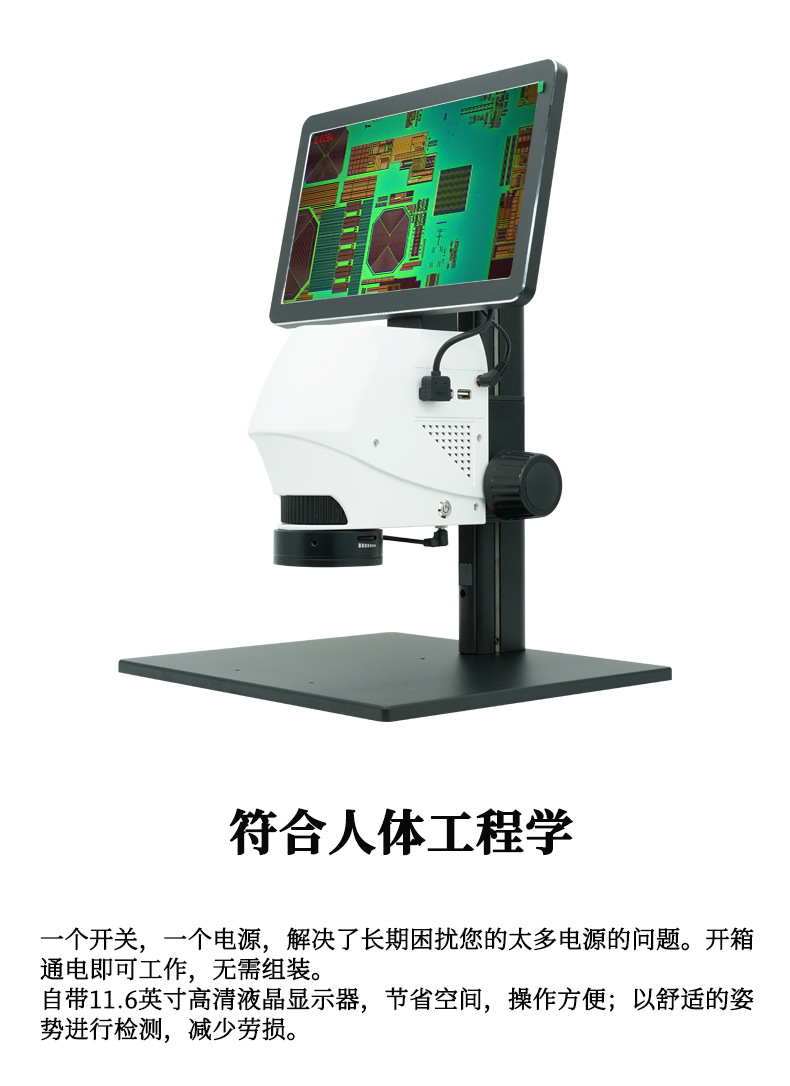

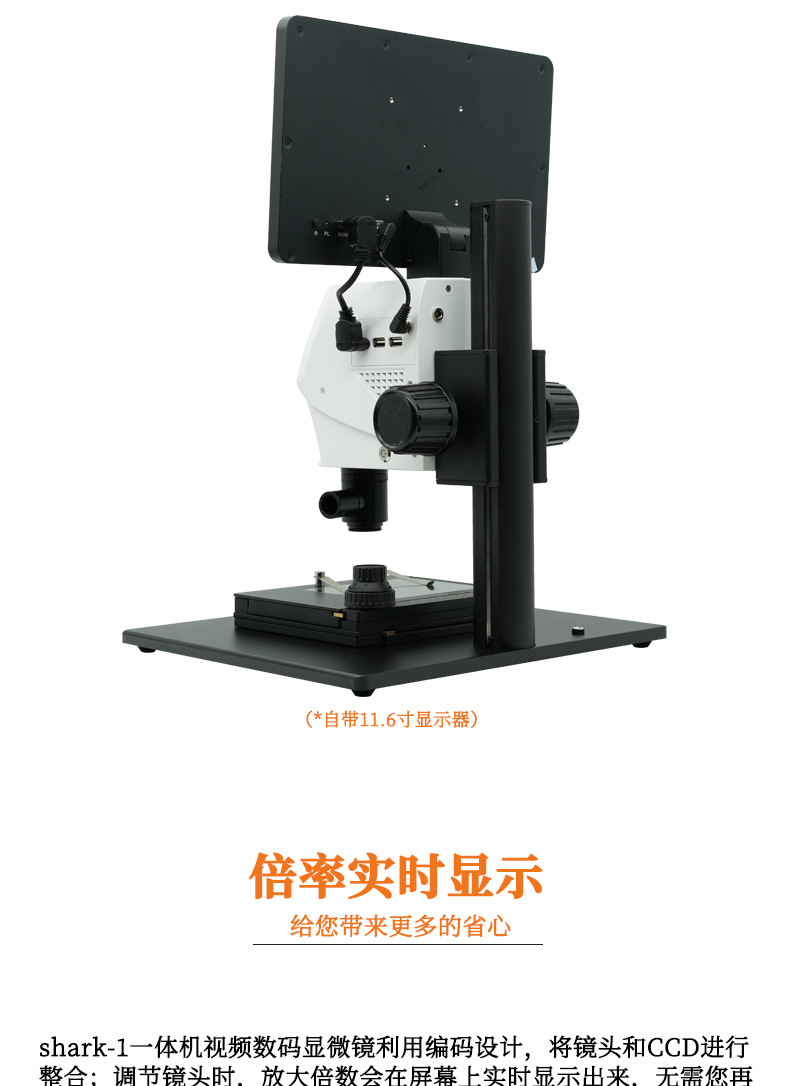

显示器 Monitor | 11.6英寸 11.6 inches | |
电源 Power |
DC12V/2A | |
选配 Optional | 物镜 Object lens | 0.5x、0.6x、0.75x、1.5x、2x |
APO镜头 APO lens | 5x、10x、20x、50x | |
显示器Monitor | 21.5英寸 21.5 inches | |
照明 Light | LED透射照明 LED transmitted illumination 同轴光照明 Coaxial lighting 透反射照明 Transflective lighting | |
移动平台 Mobile Platform | XY轴移动，台面：230*180mm 行程：170*120mm XY axis movement, table top: 230*180mm Stroke: 170*120mm | |
粗微调支架 Coarse and fine adjustment bracket | 底座尺寸Floor size：328*298mm 立柱高Column height：318mm | |
